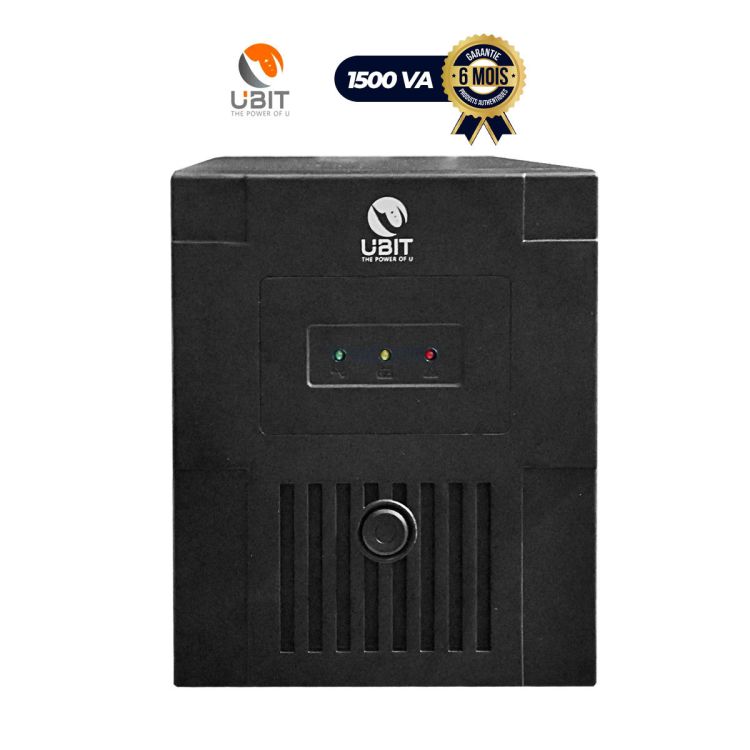

Smart Ubit UPS, a battery backup (UPS System)
Smart Ups 1500VA is the ideal entry-level uninterruptible power supply to protect your computer system. Ideal for small workstations, Epos terminals, small telecom systems or applications with computing power.
Its line interactive technology reduces the input voltage when it gets too high and increases it when it gets too low without switching to battery power. It provides full protection against overload, discharge, overload, short circuit, overvoltage, undervoltage and overheating.
This extends the life of the battery and allows you to continue working even during a power failure. If the main power supply fails (such as a power failure) or is out of range, the unit reverts to a pseudo-sine wave inverter. This is ideal for switch-mode power supplies such as those found in computer systems.
Note: Pseudo-sine systems are not suitable for all types of load. The inverter is powered by an internal 12V 9Ah battery and provides a typical small 50W system with 30 minutes of runtime and 300W for several minutes.
Buy this inverter on glotelho.cm. Leader in online sales in Cameroon. Opt for a fast delivery to your office or home.
Characteristics of the Ubit inverter :
- Capacity: 1500VA/900W
- Input voltage: 110/ 115/120 Vac or 220/230/240Vac
- Input voltage range: 81-145 VAC or 170-280 VAC
- Frequency range: 50 Hz/60Hz (automatic detection)
- Output voltage: 110/ 115/120 Vac or 220/230/240Vac
- AC voltage regulation: ±10% (Bat mode)
- Frequency range: 50Hz ± 1Hz (Bat Mode)
- Transfer time: Typical 2-6ms
- Waveform: Simulated sine wave (Bat mode)
- Battery Internal maintenance-free lead-acid battery
- Battery type and number: 12V/9Ah*2
- Net weight (kg) : 10.5
- Dimensions, D*W*H(mm): 350*146*160
- Typical recharging time: 4-6 hours to reach 90% of capacity.
- Full protection Protection against overload, discharge, overload, short circuit, overvoltage, undervoltage and overheating.
- Overvoltage, undervoltage and overtemperature protection
- LED display of AC/Battery mode, charge/Battery level, input/output voltage,
- Overload, fault, and low battery
- The right green LED lights up and the 2nd to 5th green LEDs light up gradually
indicating the charge level - The right yellow LED lights up and the 2nd to 5th green LEDs light up gradually.
indicating the battery capacity - Red light (default)
- Battery mode: Ringing every 10 seconds
- Low battery: Ring every second
- Overload: Ringing every 0.5 seconds
- Battery replacement alarm: Rings every 2 seconds
- Humidity: 0-90% relative humidity 0-40 (non-condensing)
- Noise level below 40 dB
