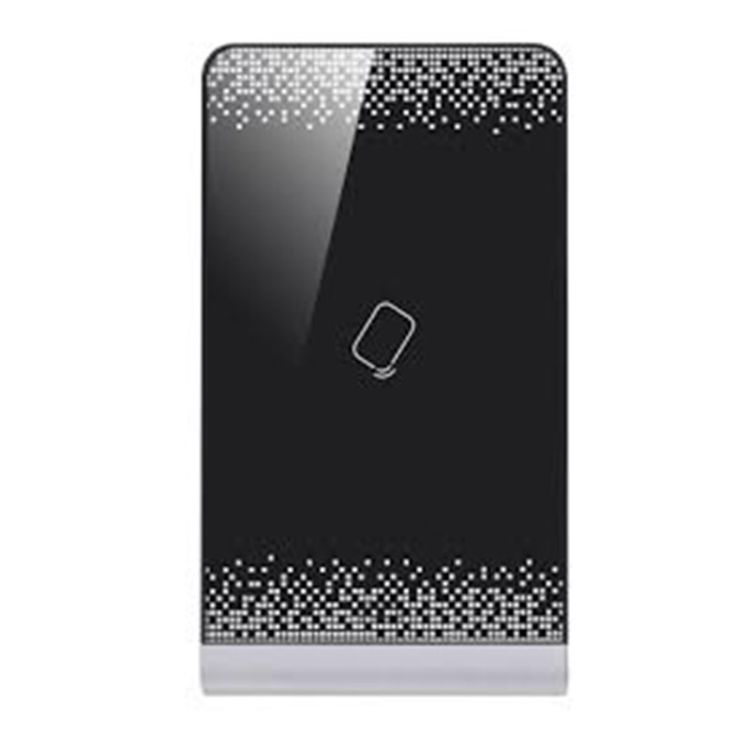

MIFARE D8E CARD ENCODER - DS-K1F100-D8E
MIFARE CARD ENCODER D8E is a contactless smart card enrolment station, used as a necessary test machine for contactless cards by card issuers, chip suppliers and testing organisations. Its SAM card slot size is equal to that of two SIM cards. The card registration station can be connected to a PC or other devices via a USB interface. Driverless USB is applied for easy installation and operation of the card registration station. The card registration station can be widely used in various industries and situations, such as business, telecommunication, post office, insurance, medical treatment, bank, petrol station, car park, etc.
Features
- 2 PSAM cassettes (standard configuration), same size with 2 SIM cards in total
- Supports online upgrade
- Supports various card types (Mifare, CPU, PSAM, ID and EM cards) with card reading frequency 13.56 MHz and 125 KHz
- Well-defined API
- Adopt high-level encryption algorithm to ensure the security of data communication
- Provides a general interface library supporting various operating systems and platform language development
- Supports online upgrading and updating
More information Highlights to note
- Card reading frequency: 13.56 MHz and 125 kHz
- Card type: standard IC card, CPU card and identity card (EM)
- PSAM card cassettes: 2 PSAM cassettes
- Protocol: ISO 14443 type A / B and ISO 7816 standard
- Interface: USB 2.0; Free driver
- Indicator light: Indicator light: indicates power and communication status
- Operating temperature: -20°C to 65°C (4°F to 149°F)
- Working current: 200mA
- Dimensions: 117mm × 67.5mm × 14.3mm
- System: Supports Windows, WinXP, Win7 and Win8
