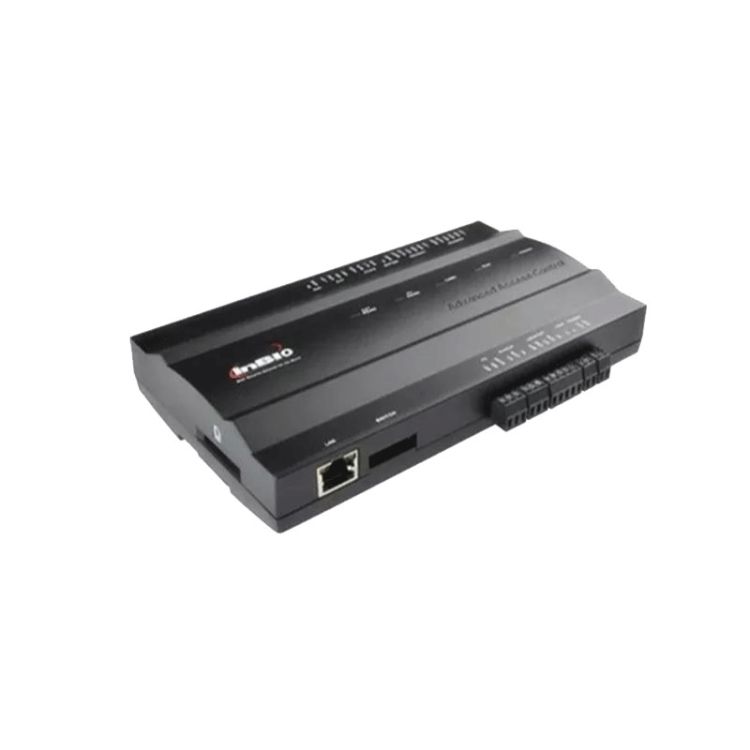

Inbio160 Opening Controller, increased control
Discover the Inbio160 Opening Controller, a device compatible with the ZK range of products with access control by biometrics, RFID and/or code. The controller works with the ZKAccess3.5 software. Create your users by biometrics and/or code and/or card with the software. Manage the time slots of each user. You can also retrieve the events of the passage history. You have an ideal system for managing access to a company entrance door. Do the same for gyms and any other access that requires restrictive control.
Main features of the Inbio160 Opening Controller
- Model: INBIO-160
- Capacity: 30,000 users per card / 3000 users per fingerprint
- History: 100,000 records
- Features: Opening control
- Standard functions: Anti-return
- Weight: 3,5 Kg
- LEDs: Communication, power, status
- Dimension controller (WxH): 226x106x36mm
- Dimension with metal box (WxHxD): 400x330x90,5mm
- Colour: Black
ENVIRONMENT
- Humidity tolerance: 10% to 80%.
- Operating temperature: 0°C to +55°C
- POWER SUPPLY
- Power supply: 9.6V - 14.4V DC, 1A max
COMMUNICATION
- Communication port: Ethernet, RS485
- inBio460 WIEGAND reader port: 4ea (26bit Wiegand, 8bit burst for PIN)
- INBIO-460 port input: 8ea (exit#1 button, door sensor#1, exit#2 button, door sensor#2, exit#3
- button, door sensor#3; exit#4 button, door sensor#4)
- INBIO-460 port output: 4ea (4 FORM-C relay output, SPDT5A@36VDC/8A@30VDC) 4ea(4 Aux
- FORM-C relay output SPDT2A@30VDC)
- Transfer rate: 38,400 bps (recommended)
- CPU: 32bit MIPS CPU
- RAM: 32M Bits
- Flash Memory: 128M Bits
- Certification: CE, FCC, RoHS
- Software: ZK Access 3.5 or 5.0
- Option: SDK
Contents
- INBIO160 Controller
- Metal box
- ZKAccess3.5 software (French)
