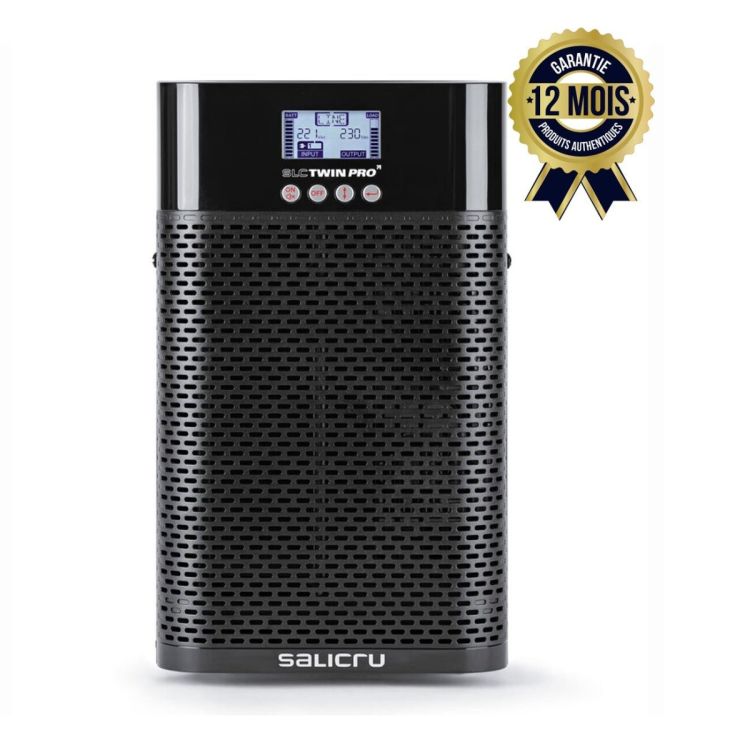

Treat yourself to this SLC 3KVA Tower UPS for your electronic equipment
The SLC 3KVA Tower UPS provides increased security for sensitive and critical loads. This type of UPS with uninterruptible power supply (UPS) technology is a tower format double conversion UPS. It incorporates the latest features to make it an advanced protection system for sensitive and critical loads.
It has a high output power factor (PF = 0.9) to ensure availability to all types of loads. Total control through status information on the LCD display and keypad. Eco-mode operation to optimise system efficiency, as well as EPO (emergency stop) functionality, with frequency converter and built-in battery test.
The Salicru UPS is suitable for avoiding any possible damage to network equipment or electrical systems such as micro outages, voltage oscillations, frequency variations, harmonics, transient bursts, and much more.
Do not hesitate to order the SLC 3KVA Tower UPS at very good price on glotelho.cm. Fast delivery anywhere in Cameroon
Technical specifications of the inverter
- Technology : On-line double conversion
- Format : Tower
INPUT
- Nominal voltage: 220 / 230 / 240 V
- Voltage range 100% load: 176 ÷ 300 V
- Voltage range 40 % load: 100 ÷ 300 V
- Rated frequency: 50 / 60 Hz
- Frequency range: ±10%.
- Total harmonic distortion (THDi): <2.5%.
- Power factor: 0.99
- Automatic frequency detection: Yes
- Protection: Resettable thermal
OUTPUT
- Power factor: 0.9
- Waveform: Pure sine wave
- Rated voltage: 220 / 230 / 240 V
- Voltage accuracy: ±1
- Power (VA/W): 3000 / 2700
- Total harmonic distortion (THDv): <2% Synchronised
- frequency: ±10
- Synchronised frequency: ±10
- Mains frequency absent: ±0.05 Hz
- Frequency: 50 / 60 Hz
- Frequency accuracy (battery mode): ±0.05Hz
- APFC Load Compatibility: Yes
- On-line efficiency: >89%÷92%
- Eco-mode efficiency: >98%
- Allowable overloads battery mode: 105% constant / 130% for 10s / 150% for 1s
- Allowable overloads bypass mode: 130% constant / 180% for 60 s
105% constant / 130% for 60 s / 150% for 10 s / >150% for 300ms - Type of sockets: Schuko
- Number of outputs: 4
BYPASS - Frequency range: ±5Hz
- Transfer time: 4 ms
BATTERIES
- Battery type: Pb-Ca sealed, AGM, maintenance free
- Charging type: I/U (constant current / constant voltage)
- Recharge time: 4 hours at 90%.
- Battery test: Manual and/or automatic programmable
COMMUNICATION
- Ports: USB HID
- Smart Slot: SNMP/Relay Slot
- Monitoring software: For Windows, Linux and Mac family
INDICATIONS
- Type : LCD + keyboard
OTHER FUNCTIONS
- Cold Start (starting from batteries) : Yes
- Automatic restart : Yes
- Emergency stop (EPO) : Yes
OPERATING MODES - On-line double conversion: Yes
- Eco-mode: Yes
- Frequency converter (CVCF): Yes (1)
GENERAL
- Working temperature: 0º C ÷ 40º C
- Relative humidity: Up to 95%, non-condensing
- Maximum working altitude: 2,400 m.s.n.m. (Power degradation up to 5,000 m)
- Acoustic noise at 1 metre: 49 dB (100% load) / ?41 dB (60% load)
Dimensions
- Depth (mm): 399
- Width (mm): 190
- Height (mm) : 327
- Weight (kg) : 22,7
