Discover the Centrifugal Pump, Multistage, Vertical 25 bar - GRUNDFOS

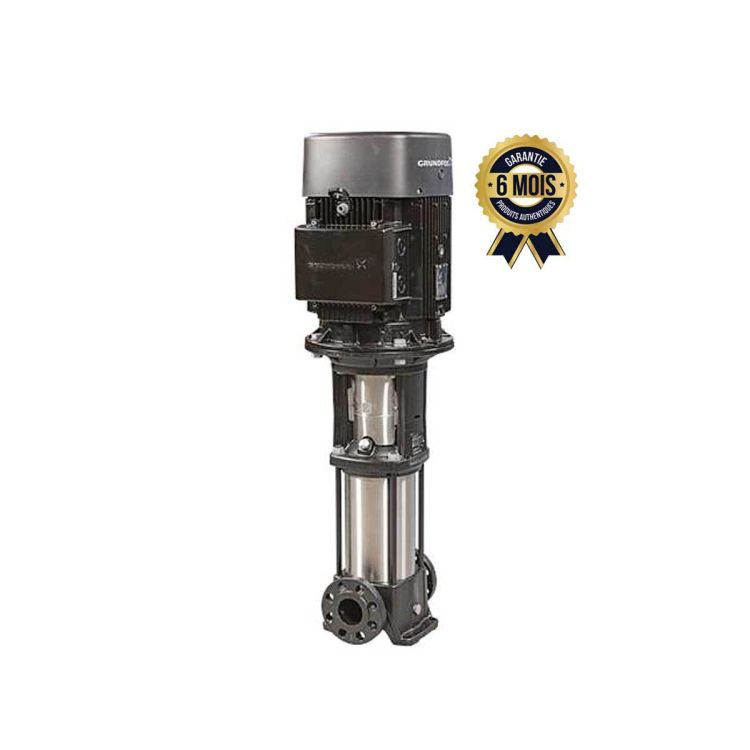

The GRUNDFOS CR 5-8 A-FGJ-AE-HQQE is a single-phase vertical multistage centrifugal pump, it has a technopolymer hydraulic part and a stainless steel jacket.
The technopolymer pump body offers in-line horizontal orientation suction and delivery. The main asset of a vertical multistage pump is its construction. Indeed, the assembly of multiple turbines allows hydraulic characteristics to obtain high manometric heights (HMT) in other words high pressures.
Area of use :
This pump is particularly suitable for building a booster set for small and medium-sized installations. This pump is also suitable for transferring drinking water.
Its strengths:
Vertical multistage pumps are distinguished by their many impellers. Also the floor space occupied by this type of product is a major asset in a cramped installation, however the height of the pump remains characteristic of vertical pumps. Reliable and robust, it will be perfect for your installation.
Don't hesitate to get this Centrifugal, Multicellular, Vertical 25 bar Pump at a very good price on glotelho.cm. Fast delivery everywhere in Cameroon
Pump Features
- Product Type: Vertical Centrifugal Pump
- Brand: GRUNDFOS
- Model: CR 5-8 A-FGJ-AE-HQQE
- Nominal flow: 5.8 m³/h
- Nom. height: 37.8 m
- Pump orientation : Vertical
- Pumped liquid: Water
- Liquid temperature range: -20 .. 120 °C
- Liquid Temperature During Operation: 20°C
- Density: 998.2 kg/m³
- Basis: Cast iron
: EN 1561 EN-GJL-200
: ASTM A48-25B
- Wheel: Stainless steel
: EN 1.4301
: AISI 304 - Inner bearing: SICMotor standard:
- Engine type: 90SB
- Nominal power - P2: 1.1 kW
- Power (P2) required per pump: 1.1 kW
- Power frequency: 50Hz
- Maximum ambient temperature: 40°C
- Maximum working pressure: 25 bar
- Maximum pressure at indicated temperature: 25 bar / 120 °C
: 25 bar / -20°C - Type of connection: DIN / ANSI / JIS
- Size of inlet connection: DN 25/32
- Suction section: 1 1/4 inch
- Discharge port diameter: 1 1/4 inch
- Pressure rating for pipe connection : PN 25
- Flange rating inlet: 250 lbs.
- Flange motor size: FT115
- Warranty: 6 months
- Condition (new, used, refurbished): New
