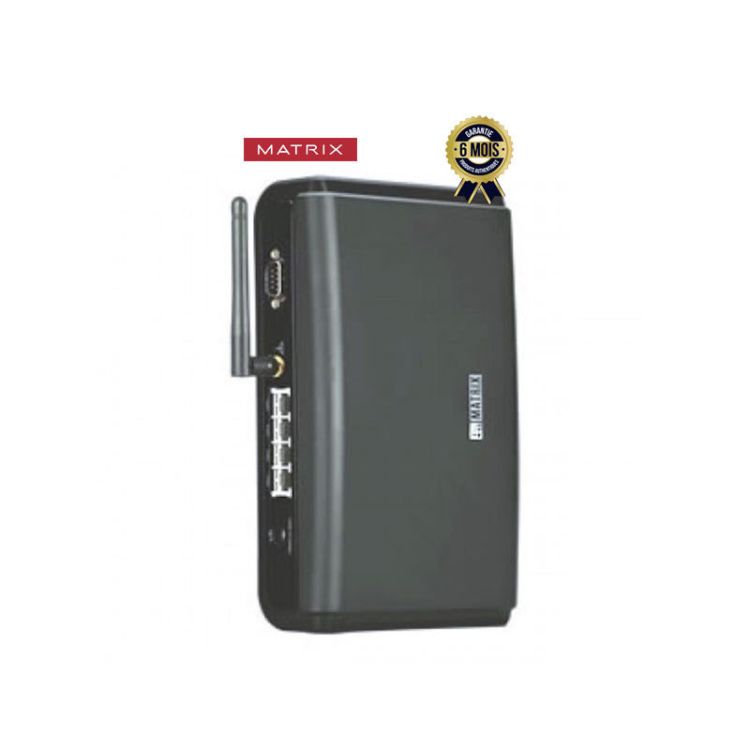

Matrix GFX44: A Multi-port GSM FXS Gateway.
Matrix SIMADO GFX44 is a gateway providing interfaces for multiple GSM/3G and FXS ports. It can be used with any existing PBX without changing their existing telephony infrastructure or in standalone mode as well. Matrix SIMADO GFX44 works as an add- on and supports flexible routing options , providing significant cost savings and round-the-clock connectivity.
SIMADO GFX44 is a fixed configuration GSM/3G-FXS voice gateway . It connects to existing telephony devices through the FXS interface. Up to four SIM cards can be placed inside the SIMADO GFX44 gateway, allowing a user to make up to four simultaneous calls. Calls to mobile numbers are made via GSM/3G SIM cards, reducing higher fixed-mobile interconnection charges. The gateway is an ideal solution for enterprises, remote project sites with limited fixed connectivity and temporary office installations.
Pdf Matrix GFX44 Multiport.
Treat yourself to the Matrix GFX44 - Multi-port - GSM/3G-FXS Gateway at the best price on the market and many others in the Network and Telecom category on Glotelho.cm, the leader in online sales in Cameroon, Delivery in Douala and Yaoundé, free branch withdrawal and payment on delivery.
Gateway Specifications:
- Product Type: GSM Gateway
- Brand: Matrix
- Model: GFX44
- Frequency bands: Quad-band GSM850, EGSM900, DCS1800, PCS1900
- Tri-band WCDMA 850/1900/2100 MHz or Tri-band
- WCDMA 900/1900/2100MHz
- Compliance: ETSI GSM Phase2 / 2+
- SIM interface: 1.8, 3V sim interface
- Antenna: 1.8 / 2.5 dBi, 50, SMA connector (male),
fixed omnidirectional swivel antenna 1.8 / 3.0 dBi, 50, SMA connector (male), omnidirectional with a three-meter long cable - Physical connector: RJ11
- Dialing: DTMF and Pulse (10 / 20PPS)
- External power adapter input: 90-265VAC, 47-63Hz
- Output: 12VDC and 2A
- Power Consumption: 8W
- Support for up to four GSM / 3G SIMs
- Easy programming interface
- Single antenna for four GSM SIMs
- Quad-band GSM network operation
- Operation of the tri-band 3G network
- Dimensions (WxHxD): 23.1 X 5.5 X 16.2 cm
- Warranty: 6 months
