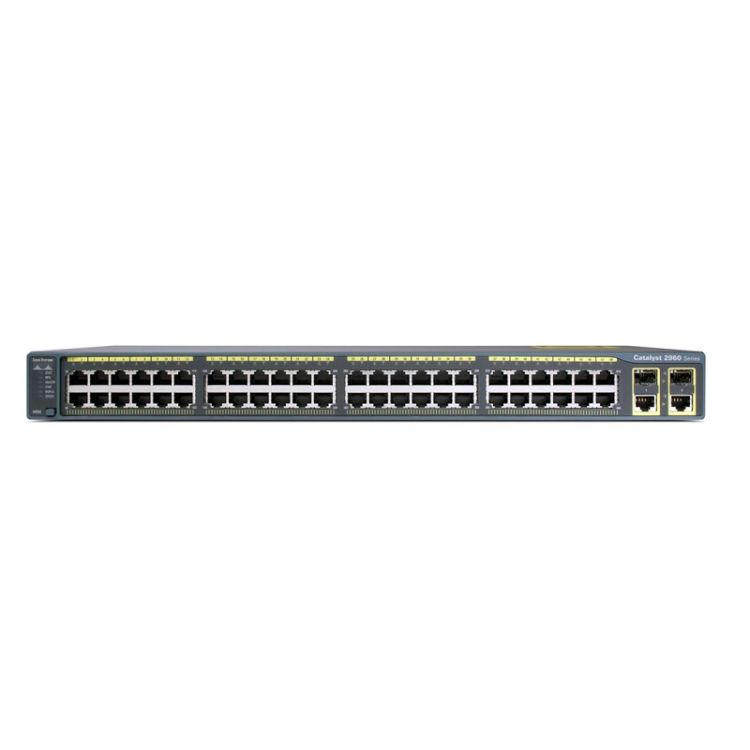

Cisco Catalyst 2960-48TC-S, 48 power

For a better internet connection, order Cisco Catalyst 2960-48TC-S. 48 RJ/45 ports to share data. Glotelho provides installation and maintenance of your systems and equipment. Benefit from 19 years of experience.

TECHNICAL DATA Cisco Catalyst 2960-48TC-S

Dimensions

Dimensions (H x W x D): 1.73 x 17.5 x 9.3 inches (4.4 x 44.5 x 23.6 cm)

Power supply

Max. Power Consumption in Watts: 45 Relative Humidity in Operation: 10% to 95% non-condensing MAC Addresses Unicast: 8000 Operating Temperature up to 1500 m (5000 ft): 23 to 113 F (-5 to 45 C) Short Term Exception up to 3000 m (3000 m): 23 to 113 F (-5 to 45 C) IGMP IPv4 Groups: 255 Operating Temperature up to 3000 m (3000 m): 23 to 104 F (-5 to 40 C) Maximum Transmission Unit (MTU): Up to 9,000 bytes Short-term exception up to 1,500 m (5,000 ft): 23 to 122 F (-5 to 50 C) Voltage: 100 to 240 VAC (Auto Select); 50 to 60 Hz Short-term exception at sea level: 23 to 131 F (-5 to 55 C) Operating altitude: Up to 10,000 ft (3,000 m)

Data rate

Packets per second (Mpps): 10.1 Max VLAN: 255 Rack height: 1 RU AC/DC support: AC only Estimated AC power: 45 W Ports: 48 Switching bandwidth: 32 Gbps Uplinks: 2 dual-purpose (each dual-purpose uplink port has 1 x 10/100/1000 Ethernet and 1 x SFP-based Gigabit Ethernet port, 1 active port) Weight: 8 lb (3.6 kg) Short-term exception up to 4000 m (13,000 ft): 23 to 104 F (-5 to 40 C)

Storage / Memory

Storage Altitude: Up to 13,000 feet (4000 m) DRAM Memory: 64 MB Storage Relative Humidity: 10% to 95% non-condensing Model: LAN Lite Entry Layer 2 Transmission Bandwidth: 16 Gbps Flash Memory: 32 MB Storage Temperature up to 15,000 feet (4573 m): -13 to 158 F (-25 to 70 C) Current: 1.3 to 0.8 A VLAN ID: 4000 Jumbo frames: 9018 bytes Find more information about this product HERE
