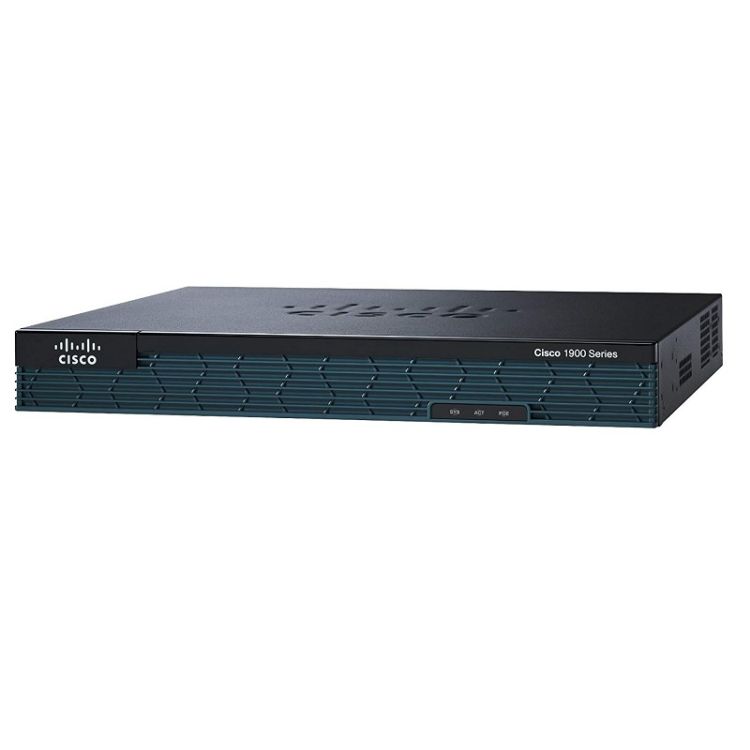

Cisco 1921/K9 Router, internet for everyone

For a better internet connection, order the Cisco 1921/K9 Router. 02 RJ/45 ports to share data. Glotelho provides installation and maintenance of your systems and equipment. Benefit from 19 years of experience.

TECHNICAL CHARACTERISTICS of the Cisco 1921/K9 Router

Services and slot density

Embedded hardware cryptography acceleration (IPsec + SSL): Yes RJ-45 embedded LAN / WAN 10/100/1000 ports: 2 EHWIC slots: 2 double-width EHWIC (using a double-width EHWIC slot consumes 2 EHWIC slots): 1 Memory (DDR2 DRAM): Default / maximum: 512 MB / 512 MB USB flash memory (internal): Default / maximum: 256 MB / 256 MB External USB flash memory slots (type A): 1 USB console port (mini-type B) (up to 115.2 kbps): 1 Serial console insert (up to 115.2 kbps): 1 Serial auxiliary port (up to 115.2 kbps): 1 Built-in power supply AC and DC power supply models POE (external) power supply options - on AC models only Redundant power support No

Power Specifications

AC input voltage: 100-240V ~ AC input frequency: 47-63 Hz AC input current range AC power (maximum) (amps): 1.5-0.6 AC input overload current: <50A Typical power (no modules): 25W AC: 60W With PoE power (platform only) : 70W Maximum PoE device power with PoE power supply: 80W DC input: 32-60 VDC, 4A, positive or negative, single source DC input wire size: AWG 14 (2.0 mm2) Safety ground wire size: AWG 14 (2.0 mm2) minimum Wire terminal (lug): Amp / Tyco No.32957 Overcurrent protection: 20A maximum

Physical Specifications

Dimensions (H x W x D): 4.75 x 34.29 x 29.21 cm (1.75 x 13.5 x 11.5 in.) Rack height: 1 rack unit (1RU) EIA rack mount 48.3 cm (19 in.) : Optional Wall mount (refer to installation guide for approved orientation) : Yes Weight: with AC power (no modules): 6.75 lb Weight: with PoE power (no modules): 7.5 lb Airflow: Return to sides

Environmental Specifications

Operating conditions Temperature: 1800 m (5906 ft) maximum altitude: 32-104˚F (0-40˚C) Temperature: 9843 ft (3000m) maximum altitude: 32-77˚F (0-25˚C) Altitude: 10,000 ft (3,000 m) Humidity: 10 to 85% relative humidity (RH) Acoustics: Sound pressure (typical / maximum): 32.99 / 58.33 dBA Acoustics: Sound power (typical / maximum): 41.99 / 67.22 dBA Transport and storage conditions Temperature: -40 to 158 ° F (-40 to 70 ° C) Humidity: 5 to 95% RH Altitude: 15,000 ft (4,570 m)

Regulatory Compliance

Safety: UL 60950-1 CAN / CSA C22.2 No 60950-1 EN 60950-1 AS / NZS 60950-1 IEC 60950-1 EMC: 47 CFR, Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS / NZS 3548 Class A VCCI V-3 EN 300-386 (immunity) EN 61000 EN 55024, CISPR 24 EN50082-1 Telecom: TIA / EIA / IS-968 CS-03 ANSI T1. 101 IEEE 802.3 RTTE Directive Find more information about this product HERE
