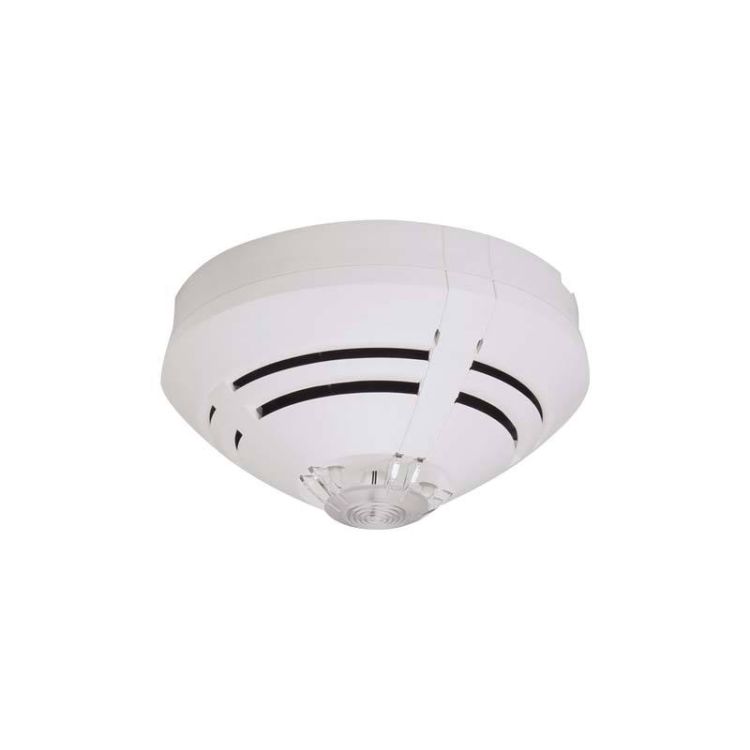

Get the best fire solution with the IQ8Quad OTblue interactive thermal detector - 802375.F
The interactive addressable IQ8Quad OTblue optical thermal multisensor detector is equipped with an optical detection principle, itself based on a light spectrum close to blue, developed to provide increased safety in all fields of application.
This inexpensive ESSER fire device is a real alternative to ionic smoke detectors, for the safety of human lives. The IQ8Quad OTblue detector is able to detect small smoke particles, but also large ones with an always constant sensitivity. It can thus cover a wider field of detection than any smoke detector. This ESSER detector incorporates an integrated short circuit isolator. An external alarm indicator can be connected here.
Treat yourself to the IQ8Quad OTblue Interactive Thermal Optical Multisensor Detector - 802375.F at the best price on the market and discover many other products in the Esser category on Glotelho.cm, the leader in online sales in Cameroon.
Specifications of the IQ8Quad OTblue Interactive Thermal Detector:
- Brand : ESSER
- Product Type : IQ8Quad Detectors
- Category : Network and Telecom
- Model : 802375.F
- Operating voltage : 8 ... 42 V DC
- Quiescent current : @ 19 V DC 40 μA
- Max monitoring height : 7.5m
- Air velocity : 0 m/s ... 25.4 m/s
- Operating temperature : 20°C ... 50°C
- Storage temperature : 25°C ... 75°C
- Relative humidity : < 95% (non-condensing)
- Index protection : IP43 (with base + option)
- Material : ABS - White color type RAL 9010
- Weight : approx. 110g
- Certification according to EN 54-5 A1R, EN 54-17
- Dimensions Ø : 117 mm H: 49 mm (62 mm with base)
- Declaration of performance DoP-20103130701
