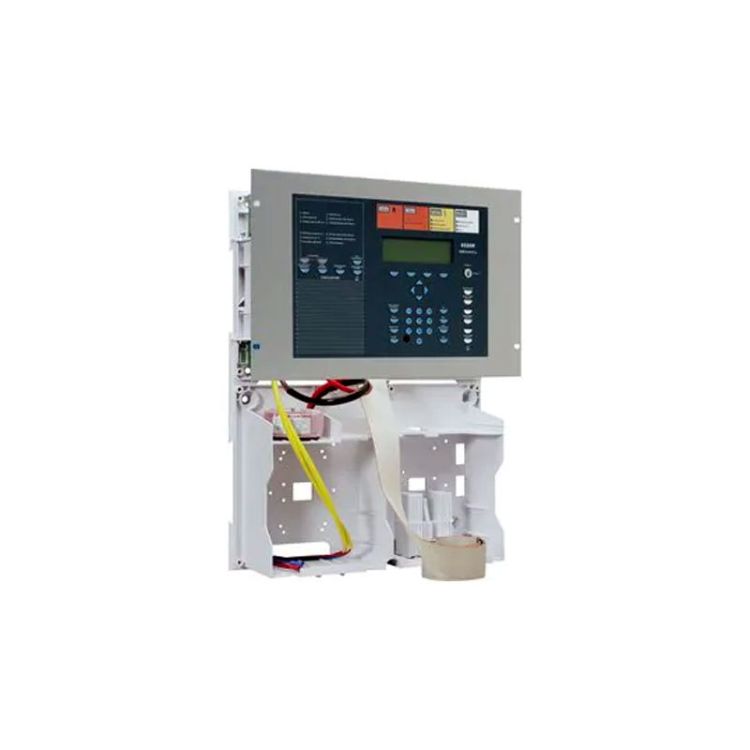

The rack-mounted IQ8Control μ addressable Control and Signaling equipment has a capacity of 512 detection points, with 1 UGA function, equipped with a 3-micromodule capacity expansion card for operation with esserbus or esserbus-Plus .

Treat yourself to the IQ8Control μ with UGA in rack - 808298F at the best price on the market and discover many other products in the Esser category on Glotelho.cm , the leader in online sales in Cameroon.

Specifications of the IQ8Control μ 808298F

• Brand : ESSER
• Type of product : Addressable Control and Signaling Equipment
• Category: Network and Telecom
• Model : 808298F
• Max. six micromodules
• Loopback bus operation protected against short circuits (up to 3,500m)
• Type of cable : 1 pair 8/10 with screen (C2 or CR1 according to current standard)
• Up to 127 points per bus / detection zones per bus
• Up to 31 esserbus® transponders per bus - Three programmable relay board
• TTY, RS485 or RS 232 interface
• Integration into the essernet network: up to 31 fire detection panels (1000m max. between each panel)
• Connection to UAE WINMAGplus via essernet serial interface (SEI)
• ECS with alphanumeric display -Event memory for up to 10,000 events
• All ECS 8000M micromodules are compatible
• 1 12V/24Ah battery with control circuit
• Monitored input for external power supply unit
• Complies with EN 54-2 A1, EN 54-4 A2 standards
• Marking : CE DPC and NF-SSI.
