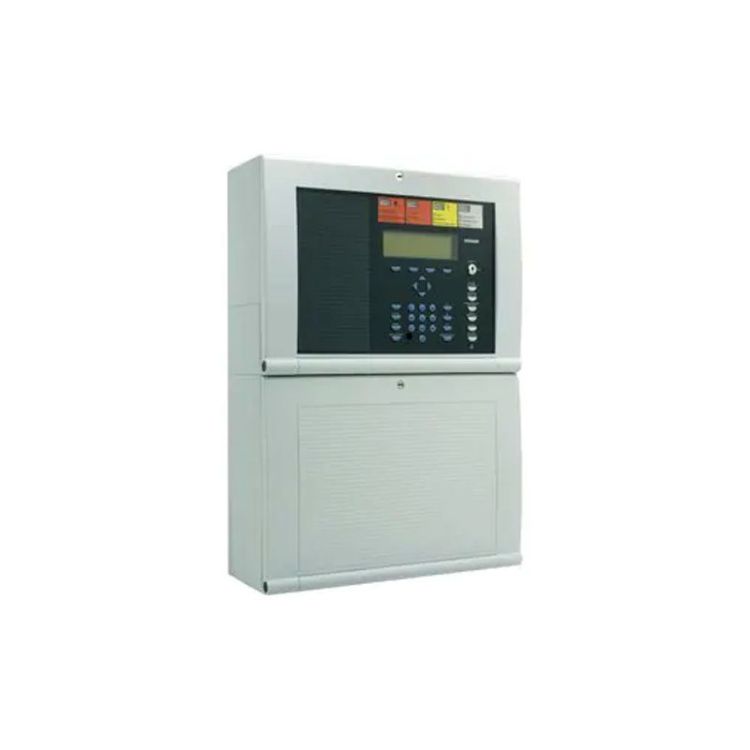

main product photo

IQ8Control M without UGA in case - 808296F

Call for Price
Be the first to review this product
  • Brand : ESSER
  • Type of product : Addressable Control and Signaling Equipment
  • Category : Network and Telecom
  • Model : 808296F
  • Max. six micromodules
  • Loopback bus operation protected against short circuits (up to 3,500m)
  • Type of cable : 1 pair 8/10 with screen (C2 or CR1 according to current standard)
  • Up to 127 points per bus / detection zones per bus
  • Up to 31 esserbus transponders per bus
  • Three programmable relay board
  • TTY, RS485 or RS 232 interface
  • Integration into the essernet network: up to 31 fire detection panels (1000m max. between each panel)
  • Connection to UAE WINMAGplus via essernet serial interface (SEI)
  • ECS with alphanumeric display
  • Event memory for up to 10,000 events
  • All ECS 8000M micromodules are compatible
  • 1 12V/24Ah battery with control circuit
  • Monitored input for external power supply unit
  • Complies with EN 54-2 A1, EN 54-4 A2 standards
  • Marking : CE DPC and NF-SSI
  • If using the internal power supply : output voltage: 24 Vdc, maximum current: 450mA
  • If using an external 24 Vdc power supply: output voltage: 24 Vdc, maximum current: 2A
  • 1 CRT auxiliary relay contact
  • Breaking capacity: 1A/30Vdc
  • 1 battery 12V 7Ah
  • Complies with NFS-61936 and NFS-61940 standards
In stock
SKU
GLO808296FCM
Control and signaling equipment

Guarantee safe & secure checkout

Get the best fire solution with the IQ8Control M without UGA in enclosure - 808296F.

The IQ8Control device is an addressable Control and Signaling Equipment that can manage 512 detection points on 6 looped esserbus or 4 esserbus-Plus buses. The esserbus micromodules allow a maximum length of 2000m (including branches). The esserbus-Plus micro-modules are power buses allowing a maximum length of 3500m and allowing the connection of IQ8Quad detectors with sound and light indicators.

The IQ8Control also works on the essernet secure loopback network. This network makes it possible to connect up to 31 ECS 8000M, EUROPA 3000, FlexES Control or IQ8Control panels over a distance of 1000 meters between each panel. Addressable Control and Signaling Equipment IQ8Control M in box, capacity 512 detection points, without UGA function , equipped with an expansion card capacity 3 micromodules for operation with esserbus or esserbus-Plus.

Treat yourself to the IQ8Control M without UGA in a box - 808296F at the best price on the market and discover many other products in the Esser category on Glotelho.cm, the leader in online sales in Cameroon.

Specifications of the IQ8Control M 808296F

  • Brand : ESSER
  • Product type : Addressable Control and Signaling Equipment
  • Category : Network and Telecom
  • Model : 808296F
  • Max. six micromodules
  • Loopback bus operation protected against short circuits (up to 3,500m)
  • Type of cable : 1 pair 8/10 with screen (C2 or CR1 according to current standard)
  • If using the internal power supply : output voltage: 24 Vdc, maximum current: 450mA
  • If using an external 24 Vdc power supply: output voltage: 24 Vdc, maximum current: 2A
  • 1 CRT auxiliary relay contact
  • Breaking capacity: 1A/30Vdc
  • 1 battery 12V 7Ah
  • Complies with NFS-61936 and NFS-61940 standards
