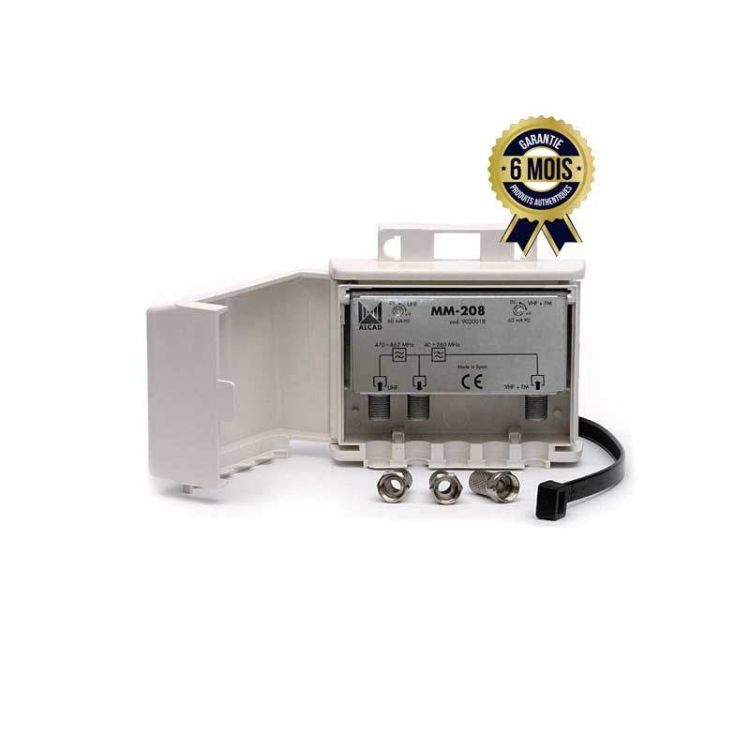

Get the Alcad MM-208 UHF-VHF/FM 2-input coupler at the best price.
Multiplexer for masts, universal or band, with two inputs, the Alcad MM-208 UHF-VHF/FM 2-input coupler mixes the signals from several antennas in a single coaxial cable. It contains switchable DC paths to allow powering a preamplifier.
Where the reception is sufficient ( 60 to 75 dBμV ) the signals of all the antennas can be combined to distribute them in the building with a coaxial cable.
Apps
- Individual digital and analogue terrestrial television installations.
- In installations where the reception levels are adequate ( 60 to 75 dBµV ), the signals from all the antennas can be combined to distribute them in the building with a single coaxial cable.
Features
- Shielded zamak frame, covered with an ABS plastic box for outdoor use.
- Fixed to the mast by means of a polyamide collar.
- F-type connectors
- Supplied in single or multiple packs.
Discover and buy the 2-input UHF-VHF/FM coupler - Alcad MM-208 - With mast current passage - 6 Months at the unbeatable price on Glotelho Cameroon. Fast home delivery anywhere in Cameroon.
Alcad Coupler Specifications :
- Product Type : Coupler
- Brand : Alcad
- Model Number : MM-208 - 90 Series
- Number of entries : 2
- Input 1 : UHF
- Input 2 : VHF/FM
- Frequency range [MHz] : FM/VHF band 40 - 260;
: UHF band 470-862 - Attenuation [dB] : 0.5 for FM/VHF; 0.7 for UHF
- Maximum current [mA] : 60
- Outdoor installation : Yes
- Warranty : 6 months
