Get the SensES R8 CMSI in a rack at a low price.

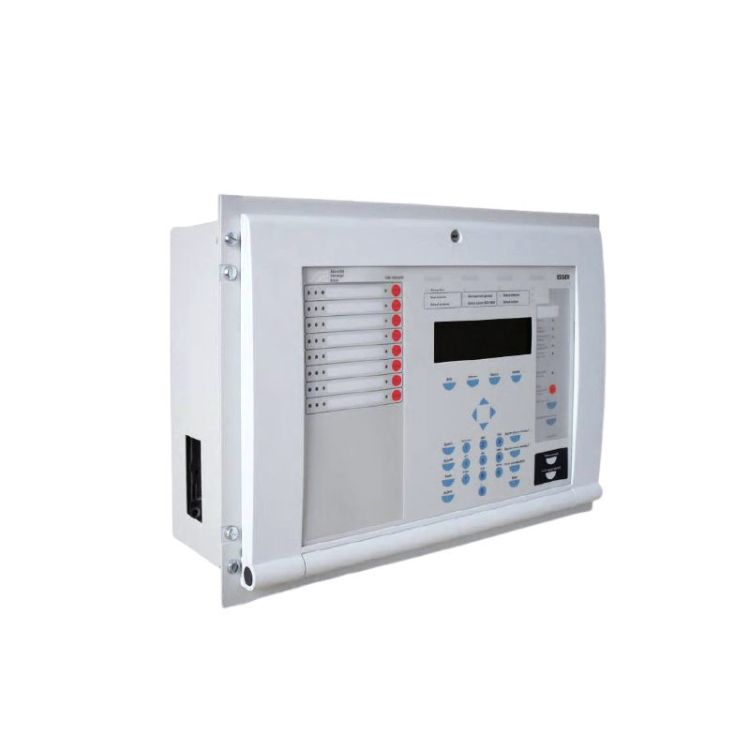

The ESSER 19'' Rack Fire Safety Centralizer is equipped with a CPU board and an HMI board. With a capacity of 8 functions with UGA, it is equipped with an alarm zone that can be extended to 16 functions and 2 alarm zones. Configurable as type A or type B.

the CMSI is an inexpensive fire device which includes a bag of accessories, the installation and user manual. ( 808291 SensES C8E and SensES R8 expansion kit undefined )

Delivered without AES and without battery.

Treat yourself to the CMSI SensES R8 in rack (expandable to 16 functions max) - 808292 at the best price on the market and discover many other products in the NETWORK AND TELECOM category on Glotelho.cm, the leader in online sales in Cameroon.

SensES R8 Rack CMSI Features:

• Brand : ESSER
• Product type : Fire safety centralizer
• Category : Network and Telecom
• Model : 808292
• Operating voltage : 21.6 ... 57.6 V DC
• Quiescent current : approx. 220mA @ 24VDC
• approx. 135 mA @ 48 VDC
• Ambient temperature : -10°C ... 50°C
• Storage temperature: -20°C ... 70°C
• Protection index : IP 30
• Colour : Light gray (Pantone 538)
• Dimensions : W: 485mm H: 357mm D: 197mm
• CMSI type : A or B
• Type of functions provided : Compartmentalisation, Smoke extraction, Evacuation
• Maximum number of functions : 8 (+ 8 with extension kit)
• Type of transmission channel : Single non loopback
• Maximum number of ZS : 8 (+ 8 with extension kit)
• Maximum number of ZA : 1 (+ 1 with extension kit)
• Maximum number of ZDs : 256
• Number of inputs for DM (type B) : 12 (+ 12 with extension kit)
